Special screw manufacturer

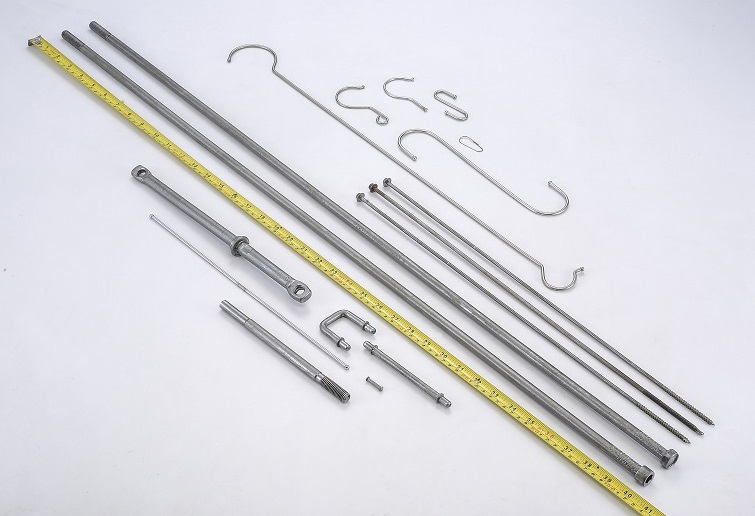

Extra long screws, formed metal rods, and hooks in various lengths and shapes displayed beside a measuring tape
A selection of extra long screws, formed metal rods, and hooks from Pi Chan Metal in Taiwan. Our forming capabilities include raised collars formed directly from the rod material as one continuous piece, without welding on a separate ring. Submit your drawing to discuss dimensions and manufacturing feasibility.
Special Screw Manufacturer in Taiwan for Custom Fastening Requirements
Standard screws do not suit every assembly. A project may require a specific length, an unusual head, a defined threaded section, or a raised feature formed at a particular position along the shank.
Pi Chan Metal Co., Ltd., based in Changhua, Taiwan, welcomes drawing-based inquiries for special screws and formed metal rods. Our manufacturing capabilities include forming a raised collar directly from the rod material, creating an integral feature without welding on a separate ring.
When selecting a special screw manufacturer, provide the complete part geometry and application requirements. This allows the proposed design, manufacturing feasibility, and purchasing conditions to be reviewed together.
Visit Pi Chan Metal Co., Ltd. to learn more about our product categories.
What Makes a Screw a Special Screw?
A special screw is a fastener with requirements that differ from an available standard product. The difference may involve dimensions, geometry, material, surface treatment, or a combination of features.
Not every project needs a completely new design. Sometimes a standard-style screw with a different length or thread coverage is sufficient. Other assemblies require a drawing-specific part.
| Requirement | Possible Drawing Feature | Information to Provide |
|---|---|---|
| Extended reach | Longer shank or overall length | Assembly thickness and required engagement |
| Defined thread position | Specified threaded and unthreaded sections | Thread length and transition location |
| Special seating | Drawing-specific head or bearing surface | Mating component dimensions |
| Integral raised feature | Collar formed along the rod | Collar diameter, thickness, and position |
| Component clearance | Controlled shank or end geometry | Assembly section and interference limits |
| Particular service conditions | Specified material and finish | Environment and performance requirements |
These are design topics for review, not a guarantee that every configuration can be manufactured.
Integral Collar Forming: A Distinctive Pi Chan Capability
A key feature of Pi Chan’s forming capability is the creation of a raised collar directly from the metal rod itself.
Through localized compression, material from the rod is displaced to form the protruding feature. The collar and rod remain one continuous piece. The collar is not a separate ring welded or assembled onto the shank.
For international buyers, this feature can be described as an “integrally formed collar” or a “metal rod with an integral collar.”
| Feature | Integral Collar Construction |
|---|---|
| Source of collar material | Formed directly from the rod itself |
| Connection to the rod | One continuous piece |
| Separate collar component | Not required for the formed feature |
| Welded collar joint | Not used |
| Collar position | Defined by the approved drawing |
| Dimensions | Reviewed for manufacturing feasibility |
| Performance | Established against the application requirements |
This capability may be worth evaluating when an assembly currently uses a separate collar. Whether it can replace an existing design depends on the required geometry, tolerances, material, and function.
For related capabilities, see metal forming and processing.
How to Specify an Integrally Formed Collar
A collar requires more information than its outside diameter. Its position, thickness, profile, and relationship to the remaining part can all affect assembly.
Define the collar location from a clear reference, such as the underside of the head or a specified rod end. Include the adjacent shank dimensions and any threaded sections.
| Collar Detail | What to Specify | Why It Matters |
|---|---|---|
| Outside diameter | Finished collar diameter and tolerance | Controls clearance and contact area |
| Thickness | Axial dimension of the collar | Affects its position within the assembly |
| Location | Distance from a defined reference | Establishes the functional position |
| Profile | Edge and transition geometry | Defines contact and mating clearance |
| Adjacent shank | Diameter on each side | Determines fit with surrounding components |
| Thread relationship | Distance between collar and thread | Helps prevent assembly interference |
| Acceptance criteria | Critical dimensions and inspection references | Creates a measurable approval basis |
Where the collar provides a stop or locating surface, identify the functional face on the drawing. Do not assume that every surface requires the same tolerance.
Special Screw and Long Rod Requirements
Pi Chan’s product categories provide starting points for discussing a custom requirement. Select the closest configuration and show the differences on your drawing.
| Product Category | Relevant Specification Details | Related Page |
|---|---|---|
| Extra long screws | Diameter, length, straightness, and thread coverage | Extra long screws |
| Socket head cap screws | Head dimensions, drive, thread, and material properties | Hexagon socket head cap screws |
| Carriage screws | Rounded head, square neck, length, and thread | Carriage screws |
| Self-tapping screws | Thread design, point, receiving material, and hole geometry | Self-tapping screws |
| Formed rods with integral collars | Rod dimensions, collar geometry, and position | Submit a complete drawing for review |
A product category does not confirm every size, material, or combination of features. Manufacturing feasibility must be assessed for the complete part.
Prepare a Drawing That Explains the Function
A clear drawing is the foundation of a useful quotation. Show the finished dimensions, units, tolerances, material, and surface treatment.
Also explain how the part fits into the assembly. A dimension that appears minor may be essential because it controls engagement, spacing, or seating.
For long screws and rods, define straightness requirements and the intended inspection method when these affect function. For threaded parts, identify the thread designation rather than stating only a nominal diameter.
Distinguish essential tolerances from dimensions that allow greater variation. This helps avoid unnecessary manufacturing restrictions while preserving the features that matter.
Material and Surface Treatment Selection
Specify material and finish separately. A description such as “steel screw” does not establish the required mechanical properties, and surface color does not establish corrosion performance.
| Requirement | Details to Include |
|---|---|
| Material | Required grade or material specification |
| Mechanical properties | Applicable strength or hardness requirements |
| Surface treatment | Coating or finish designation |
| Service conditions | Moisture, temperature, chemicals, and other exposure |
| Mating materials | Materials contacting the finished part |
| Installation | Relevant tightening or assembly conditions |
| Documentation | Required material or inspection records |
The forming process, geometry, and material must be compatible. Availability should be confirmed before the design is approved for purchasing.
One-piece construction describes how the feature is made; it does not, by itself, establish a particular strength or load rating.
From Drawing Review to Production Approval
A custom part needs an agreed specification before production. Confirm the drawing revision, critical dimensions, inspection requirements, and any sample approval conditions.
The following sequence provides a framework for discussion. Sampling, testing, and documentation arrangements require confirmation for each project.
| Stage | Information to Agree |
|---|---|
| Initial inquiry | Drawing, application, quantity, and requested delivery |
| Feasibility review | Geometry, material, forming requirements, and tolerances |
| Quotation | Product specification, tooling if applicable, price, and delivery terms |
| Sample evaluation | Availability, evaluation method, and acceptance criteria |
| Production approval | Approved drawing revision and agreed requirements |
| Repeat order | Part identification and any specification changes |
If a sample is supplied, evaluate it with representative mating components. Record the results rather than approving only its visual appearance.
Quality Requirements for Custom Screws and Formed Rods
Inspection should focus on the features that determine fit and function. For an integral collar, this may include its location and outside diameter. For a long screw, thread dimensions and straightness may be important.
| Inspection Item | Requirement to Define |
|---|---|
| Overall geometry | Length, diameters, and relevant tolerances |
| Threads | Designation, coverage, and inspection method |
| Head or drive | Dimensions and tool compatibility |
| Integral collar | Diameter, thickness, position, and profile |
| Surface condition | Finish and acceptable defect limits |
| Material properties | Required evidence or testing |
| Assembly fit | Checks using representative components |
| Identification | Part number, revision, and required batch information |
Agree on required records before ordering. Do not assume a general product description includes specific certificates or test reports.
Request a Quote from Pi Chan Metal
Send your drawing with the required quantity and application details. If your project includes an integral collar, identify its function and the dimensions that control performance.
Include the material, finish, documentation requirements, delivery destination, and requested date. If the drawing is incomplete, clearly identify which requirements remain open for discussion.
Contact Pi Chan Metal to discuss your special screw or formed rod requirement, including feasibility, minimum order quantity, pricing, and delivery arrangements.
Special Screw Manufacturer FAQ
What Does a Special Screw Manufacturer Produce?
A special screw manufacturer reviews and produces fasteners with drawing-specific requirements. These may include unusual lengths, defined thread positions, special heads, or formed features. The complete specification determines whether a proposed part is feasible.
What Is an Integrally Formed Collar?
It is a raised feature formed directly from the rod material. The collar and rod remain one continuous piece, rather than using a separately attached ring. Pi Chan identifies this forming capability as a distinctive manufacturing feature.
Is the Collar Welded onto the Rod?
For Pi Chan’s integral collar construction, the collar is formed from the rod itself. A separate welded-on collar is not used for that feature. The drawing should clearly identify where this construction is required.
Can an Integral Collar Replace a Separate Ring?
It may be an option, subject to design review. Compare the required dimensions, tolerances, material, assembly sequence, and functional loads. A one-piece design should not be approved as a replacement solely because its appearance is similar.
Does One-Piece Construction Guarantee Greater Strength?
No universal strength improvement can be assumed. Performance depends on the material, geometry, process, and loading conditions. Any strength claim should be supported by appropriate evaluation for the actual part.
What Information Is Needed to Review a Custom Screw?
Provide a drawing showing dimensions, threads, head or drive details, material, finish, and tolerances. Include the application, mating components, quantity, and delivery requirements. Identify critical functional features.
Can Pi Chan Review Long Screws with Special Features?
Submit the required length, diameter, thread coverage, and special geometry for review. Feasibility depends on the complete configuration. Do not assume a general product range confirms every combination of length, material, head, and collar.
Can a Sample Be Used Instead of a Drawing?
A sample can help explain the shape, but it may not establish material grade, tolerances, or mechanical properties. A worn sample can also differ from its original dimensions. Agree on a controlled specification before production.
Can I Request a Particular Material or Finish?
Include the required grade and treatment in the inquiry. Availability and compatibility must be confirmed against the geometry and manufacturing requirements. Avoid relying only on descriptions such as “stainless” or “black finish.”
Are Samples Available Before a Production Order?
Ask about sample availability, cost, and lead time during quotation. If samples are supplied, agree on how they will be evaluated and record the approved drawing revision before production.
What Inspection Documents Can Be Supplied?
Specify the records required for your project. Availability, scope, and any associated cost must be confirmed before ordering. Do not assume that every quotation includes material certificates or performance test reports.
What Are the Minimum Order Quantity and Lead Time?
These depend on the design, tooling, material, finish, quantity, and production schedule. Provide the requested delivery date and destination so the quotation can address your purchasing timeline.
