Self-tapping Screws for Component Assembly
Self-tapping screws create their own mating threads as they are driven into a suitable material. Depending on the design, they form threads by displacing material or cut threads by removing material. This can eliminate a separate thread-tapping operation when the screw and receiving component are properly matched.
Choosing the right screw requires more than matching diameter and length. The receiving material, hole geometry, component thickness, thread design, and installation method all influence the finished connection.
Pi Chan Metal Co., Ltd., based in Changhua, Taiwan, welcomes inquiries for self-tapping screws. Submit your drawing and application details to discuss the requested specification, manufacturing feasibility, and order requirements.
Learn more about Pi Chan Metal Co., Ltd. and its fastening product categories.
Self-tapping Screws vs. Self-drilling Screws
Self-tapping and self-drilling describe different functions. Self-tapping refers to creating mating threads; self-drilling refers to creating the hole.
Many self-tapping screws require a prepared hole. Self-drilling designs incorporate a drill point that can produce the hole within a specified material and thickness range. A sharp point alone does not establish drilling capability.
| Screw Category | Main Function | Hole Preparation |
|---|---|---|
| Thread-forming self-tapping screw | Forms mating threads by displacing material | Requires suitable receiving-hole geometry |
| Thread-cutting self-tapping screw | Cuts mating threads and produces chips | Generally uses a prepared hole |
| Self-drilling screw | Drills a hole and creates mating threads | May eliminate pre-drilling within its rated capacity |
| Machine screw | Engages an existing mating thread | Requires a tapped hole, nut, or threaded insert |
These categories explain fastening functions and do not represent a confirmed list of Pi Chan stock products. Confirm the required design when submitting an inquiry.
Match the Screw to the Receiving Material
A self-tapping screw should be selected for the actual material it engages. Metal grade, sheet thickness, plastic type, and component geometry can change installation behavior.
Avoid specifying only “for metal” or “for plastic.” Provide the material designation and relevant dimensions so the application can be reviewed accurately.
| Receiving Material or Component | Details to Provide | Selection Consideration |
|---|---|---|
| Sheet metal | Material grade, thickness, and hole dimensions | Thread engagement and resistance to stripping |
| Formed metal component | Local thickness and formed-hole geometry | Actual material available for engagement |
| Plastic component | Resin grade, boss dimensions, and hole geometry | Suitability of thread design and installation conditions |
| Blind hole | Usable depth and bottom clearance | Space for the screw point and any cutting chips |
| Multi-part assembly | Thickness and hole arrangement of each part | Clearance through upper parts and engagement in the receiving part |
For wood fastening, visit the wood screw manufacturer page and identify the wood or panel material in your inquiry.
Self-tapping Screw Specifications to Include in Your Drawing
A complete drawing reduces ambiguity and helps establish a consistent quotation basis. Specify the screw standard where applicable, together with any deviations or additional requirements.
The following table is a specification checklist. Available dimensions, materials, and configurations must be confirmed for the requested product.
| Specification | Information Required |
|---|---|
| Diameter | Nominal size and applicable designation |
| Length | Required length and measurement reference |
| Thread | Thread type, geometry, and applicable standard |
| Threaded length | Required thread coverage |
| Point | Point configuration and relevant dimensions |
| Head | Shape, diameter, height, and seating requirements |
| Drive | Drive type, size, and tool compatibility |
| Material | Required grade or material specification |
| Finish | Surface treatment and acceptance requirements |
| Tolerances | Critical dimensions and permitted variation |
Do not assume that a tapping-screw designation is interchangeable with a metric machine-thread designation. Identify the required thread clearly on the drawing.
For drawing-specific configurations, see special screw manufacturing and submit the complete design for review.
Why Pilot-hole Size Matters
The receiving hole is part of the fastening design. A hole that is too small can increase installation resistance, while an oversized hole can reduce engagement. The appropriate hole dimensions depend on the selected screw and substrate.
Use the hole recommendations for the particular screw design and verify them in representative components. A general drill-size rule should not replace application-specific guidance.
For blind holes, include usable depth and clearance below the installed screw. Thread-cutting designs may also require space for chips. For sheet-metal assemblies, review the actual thickness and hole-forming method rather than relying only on nominal sheet dimensions.
Head Style, Drive Type, and Installation Access
Select the head to suit the mating component. A countersunk head requires compatible seating geometry, while a projecting head needs sufficient clearance around the finished assembly.
The drive must match the installation tool and available access. Specify any restrictions caused by recessed locations, nearby components, or automated assembly equipment.
| Feature | Question to Resolve |
|---|---|
| Head seating | Should the head sit flush or above the surface? |
| Bearing area | What surface supports the underside of the head? |
| Driver access | Can the tool remain aligned with the screw? |
| Drive fit | Does the specified bit fit the recess correctly? |
| Assembly equipment | Are there feeding or tooling requirements? |
| Final clearance | Could the head or screw tip interfere with another part? |
A correct drive does not compensate for an unsuitable hole or thread design. Evaluate the screw as part of the complete assembly.
Material and Surface Finish Selection
Specify material and finish according to the required mechanical properties, exposure conditions, and mating materials.
Descriptions such as “stainless,” “rustproof,” or “high strength” are not complete purchasing specifications. State the required grade, treatment, and acceptance criteria. A stainless steel designation alone does not establish the ability to tap a particular metal.
| Requirement | Details to Confirm |
|---|---|
| Screw material | Grade and relevant specification |
| Mechanical properties | Required properties for the application |
| Surface treatment | Coating or finish designation |
| Exposure | Indoor, humid, outdoor, or other service conditions |
| Material compatibility | Contact with dissimilar metals or sensitive substrates |
| Verification | Required documentation or agreed testing |
Confirm availability for the proposed screw configuration before approving the specification.
Installation Validation and Quality Requirements
Trial assembly should use representative production components, holes, and installation equipment. Check whether the screw starts correctly, creates the intended thread, seats properly, and achieves the required joint condition.
Installation torque must allow thread creation and seating without damaging the screw or receiving material. Establish suitable settings through the selected screw’s guidance and application testing rather than applying one universal torque value.
Agree on inspection and acceptance requirements before ordering.
| Quality Item | Requirement to Agree |
|---|---|
| Dimensions | Diameter, length, head geometry, and tolerances |
| Thread and point | Conformity to the drawing or specified standard |
| Drive | Fit with the required installation tool |
| Surface condition | Acceptable appearance and defect limits |
| Assembly performance | Trial method and acceptance criteria |
| Documentation | Required inspection or material records |
| Identification | Part number, drawing revision, and batch details |
| Packaging | Quantity, labeling, and protection requirements |
These are items to discuss with the supplier, rather than a statement that every inspection or document is included with every order.
Request a Quote for Self-tapping Screws
To request a quotation from Pi Chan Metal, provide your drawing together with the receiving-material details and purchasing requirements.
| Inquiry Item | What to Include |
|---|---|
| Drawing | Drawing number, revision, dimensions, and units |
| Application | Components being joined and intended use |
| Receiving material | Grade, thickness, and relevant geometry |
| Hole details | Diameter, depth, and hole preparation method |
| Screw specification | Thread, point, head, drive, material, and finish |
| Quantity | Initial order and estimated repeat demand |
| Approval requirements | Samples, inspection, and documentation |
| Delivery | Destination and requested delivery date |

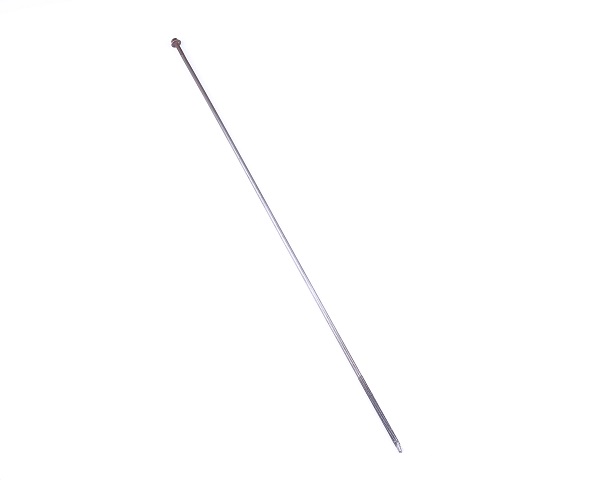

If your assembly requires extended reach, review extra long screws and confirm whether the required thread design is feasible for the application.
Contact Pi Chan Metal to discuss specifications, availability, pricing, and delivery arrangements.
Self-tapping Screws FAQ
What Are Self-tapping Screws?
Self-tapping screws create mating threads in a suitable receiving material during installation. They may form or cut those threads, depending on the design. They can remove the need for a separate tapping operation, but they do not always remove the need for hole preparation.
Do Self-tapping Screws Need a Pilot Hole?
Many designs require a prepared hole. Whether pre-drilling is necessary depends on the screw design, receiving material, thickness, and manufacturing method. Follow the requirements for the selected product rather than assuming that all self-tapping screws can penetrate an unprepared surface.
Are Self-tapping Screws the Same as Self-drilling Screws?
No. Self-tapping describes thread creation, while self-drilling describes hole creation. A self-drilling screw includes a drill point and can create its own hole within a specified capacity. A conventional self-tapping screw may require a drilled, punched, or molded hole.
What Is the Difference Between Thread-forming and Thread-cutting Screws?
Thread-forming screws displace receiving material to create the mating thread. Thread-cutting screws remove material and produce chips. The appropriate design depends on the substrate, component geometry, and assembly requirements.
Can Self-tapping Screws Be Used in Plastic?
Some designs are intended for plastics, but a screw selected for metal should not automatically be used in a plastic component. Identify the resin, boss dimensions, hole geometry, and service conditions. Evaluate the proposed screw in representative parts.
How Do I Choose the Correct Screw Length?
Consider the thickness of the attached components, required engagement, point geometry, and available clearance. For a blind hole, allow space below the installed screw. For a through connection, check that the projecting tip will not interfere with other components.
How Do I Determine the Correct Pilot-hole Diameter?
Use the recommendation for the specific screw and receiving material. Hole size depends on more than nominal screw diameter. Confirm the proposed dimensions through representative assembly trials, particularly when changing material, thickness, or hole preparation methods.
Can Self-tapping Screws Be Removed and Reinstalled?
Reinstallation suitability depends on the screw design, receiving material, and condition of the formed thread. Repeated servicing can affect the connection. If frequent disassembly is expected, evaluate whether a threaded insert or another fastening arrangement better suits the application.
Why Does a Self-tapping Screw Strip During Installation?
Possible causes include an oversized receiving hole, unsuitable thread design, excessive tightening torque, or insufficient material engagement. Review the hole dimensions, substrate, screw specification, and tool settings together before changing only the screw size.
Can Self-tapping Screws Be Used Outdoors?
Outdoor suitability depends on material grade, finish, exposure, and compatibility with the connected components. Specify the actual environment and required corrosion performance. A coating color or general material description alone does not establish suitability.
Can Pi Chan Review Custom Self-tapping Screw Requirements?
Submit a drawing showing the required thread, point, head, drive, dimensions, material, and finish. Include the receiving-material and hole details. Manufacturing feasibility and commercial terms must be confirmed for the complete specification.
What Are the Minimum Order Quantity and Lead Time?
Minimum order quantity and lead time depend on the screw design, tooling, material, finish, quantity, and production schedule. Request confirmation with your quotation and include the required delivery date and destination.
