Hex Socket Cap Screws for Industrial Purchasing and Assembly
Hex socket cap screws are cylindrical-head fasteners with an internal hexagonal drive. They are commonly selected for assemblies that use tapped holes, threaded inserts, or nuts and require tool access along the screw axis.
For purchasing teams, identifying the correct screw means more than matching its appearance. Thread pitch, under-head length, thread coverage, material properties, and surface finish must suit the original design.
Pi Chan Metal Co., Ltd., based in Changhua, Taiwan, welcomes inquiries for hex socket cap screws. Send your drawing, required quantity, and application details to discuss the proposed specification and manufacturing feasibility.
Learn more about Pi Chan Metal Co., Ltd. and its screw product categories.
Identify the Correct Hex Socket Cap Screw Before Ordering
“Hex socket cap screw,” “socket head cap screw,” and “Allen bolt” may appear in purchasing descriptions. However, informal names alone do not fully identify a product.
A screw with an internal hex drive may have a cylindrical, button, countersunk, or other head configuration. Confirm the head style and applicable product specification before placing an order.
For an explanation of cylindrical-head geometry and installation clearances, see hexagon socket head cap screws.
| Identification Item | What to Confirm | Purchasing Risk if Omitted |
|---|---|---|
| Head configuration | Cylindrical head and required dimensions | Incorrect seating or clearance |
| Thread system | Metric or inch-based designation | Incompatible mating threads |
| Thread pitch | Specified pitch or threads per inch | Incorrect engagement |
| Length | Under-head measurement | Insufficient reach or bottoming |
| Thread coverage | Fully or partially threaded | Interference with the assembly |
| Material properties | Required grade and strength specification | Unapproved substitution |
| Finish | Required treatment and surface condition | Different corrosion or installation behavior |
| Drawing revision | Current approved design | Supply to an obsolete specification |
These are specification items to confirm, not a statement of available stock configurations.
Metric and Inch Threads Must Be Specified Separately
Metric and inch screws can look similar while having incompatible thread dimensions. A screw that begins to enter a hole is not necessarily the correct match.
For metric products, identify the nominal diameter and pitch. For inch products, identify the diameter, thread series, and threads per inch. Include thread tolerance or class where required.
Keep the thread designation separate from the hex key size. The nominal screw diameter does not describe the tool required to turn it.
| Measurement | What It Describes | How to Specify It |
|---|---|---|
| Thread diameter | Nominal size of the threaded body | Complete thread designation |
| Thread pitch | Spacing between metric threads | Pitch in millimeters |
| Threads per inch | Inch-thread spacing | Required TPI and thread series |
| Screw length | Distance from beneath the head to the tip | Dimension with units |
| Hex socket size | Tool interface inside the head | Required across-flats dimension |
| Head diameter and height | External head dimensions | Standard reference or drawing |
Avoid approving replacements from photographs alone. Use a drawing, original specification, or verified measurements.
How to Review a Replacement Screw
When sourcing a replacement, first establish what the original screw was intended to do. A part that fits physically may still differ in strength, finish, thread coverage, or installation requirements.
Compare the replacement against the approved design rather than relying only on a worn sample. Used screws may have damaged threads, altered surfaces, or distorted drive recesses.
| Replacement Check | Question to Resolve |
|---|---|
| Dimensional match | Does the replacement meet the required thread, length, and head dimensions? |
| Mechanical properties | Does it meet the original strength requirements? |
| Thread coverage | Is the threaded section positioned correctly? |
| Surface treatment | Is the finish acceptable for the service environment? |
| Seating | Does the head bear properly on the component or washer? |
| Installation | Does the approved tightening procedure remain appropriate? |
| Documentation | Is the required evidence available? |
Do not substitute a different head style or material without reviewing the connection requirements. Where the original specification is unavailable, identify the unresolved requirements before approving supply.
Define Material and Finish Requirements
Material and surface treatment should be separate entries in the purchasing specification. Descriptions such as “black screw,” “stainless screw,” or “high-strength screw” leave important details unresolved.
Specify the required material grade or mechanical property class, together with the applicable requirements. Identify the coating or finish and any relevant acceptance criteria.
| Requirement | Information to Provide |
|---|---|
| Material | Grade or material specification |
| Mechanical properties | Required strength specification or property class |
| Surface treatment | Coating or finish designation |
| Exposure conditions | Moisture, chemicals, temperature, or outdoor service |
| Mating materials | Materials contacting the screw |
| Installation condition | Dry, lubricated, or otherwise controlled |
| Verification | Required inspection records or test documentation |
Changing a coating or adding lubricant can change installation behavior. Review the tightening specification when these conditions change.
Availability must be confirmed for the requested combination of dimensions, material, properties, and finish.
Length, Thread Coverage, and Assembly Fit
Specify under-head length and threaded length separately when both affect the assembly.
For a blind tapped hole, check usable thread depth and clearance beneath the installed screw. The screw must not bottom out before the head clamps the components.
For a partially threaded design, confirm that the unthreaded section does not interfere with the receiving thread. For a nut connection, check the complete component stack and permitted projection.
| Assembly Feature | Fit Requirement |
|---|---|
| Clamped parts | Correct total thickness |
| Washers and spacers | Included in the length calculation |
| Blind hole | Adequate usable thread depth and bottom clearance |
| Unthreaded shank | Compatible with the hole and engagement position |
| Head recess | Suitable counterbore diameter and depth, if used |
| Tool approach | Sufficient access for installation and removal |

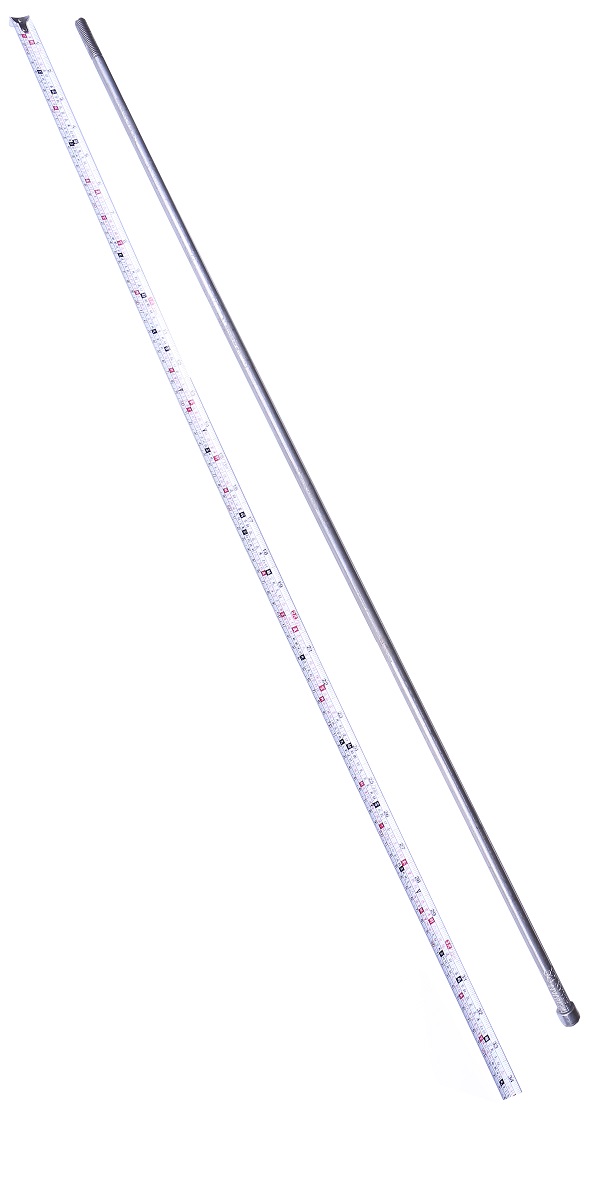

For applications requiring extended reach, review extra long screws. Confirm the proposed head and thread configuration rather than assuming that every long screw design is available.
Agree on Samples and Acceptance Criteria
Sample evaluation is most useful when the acceptance criteria are defined in advance. Decide which dimensions, documents, and assembly checks are necessary for approval.
If samples are supplied, evaluate them with representative mating components and the intended installation method. Record the approved drawing revision and any agreed conditions.
| Approval Stage | Items to Review |
|---|---|
| Specification review | Drawing, standard, material, properties, and finish |
| Dimensional inspection | Thread, length, head, socket, and critical tolerances |
| Assembly trial | Engagement, seating, clearance, and tool fit |
| Performance validation | Required application-specific testing |
| Documentation review | Agreed records and identification |
| Approval record | Drawing revision and sample reference |
Sample approval should not leave production requirements implicit. Record the agreed specification so repeat orders can reference the same basis.
These stages describe topics to discuss; sample supply and inspection services require confirmation.
Prepare for Repeat Orders
For recurring purchases, maintain a controlled part specification. A complete part number should refer to the drawing revision, material requirements, finish, and packaging instructions.
Communicate changes before the next order, including changes to mating parts, installation equipment, delivery requirements, or acceptance criteria.
Packaging should help prevent mixed sizes and preserve product identification. If batch identification or traceability records are required, include those requirements in the inquiry.
Request a Hex Socket Cap Screw Quotation
A complete request helps Pi Chan review the product and commercial requirements together.
| Inquiry Item | Details to Include |
|---|---|
| Drawing | Part number, revision, dimensions, and units |
| Product specification | Applicable standard and any deviations |
| Thread | Diameter, pitch, and tolerance requirements |
| Length and coverage | Under-head length and threaded length |
| Material and properties | Required grade and strength specification |
| Finish | Surface treatment and acceptance criteria |
| Quantity | Initial order and estimated repeat demand |
| Approval | Sample, inspection, and documentation requirements |
| Packaging | Quantity per pack, labeling, and protection |
| Delivery | Destination and requested date |
For nonstandard dimensions or special features, explore special screw manufacturing.
Contact Pi Chan Metal to discuss feasibility, pricing, minimum order quantity, and delivery arrangements.
Hex Socket Cap Screws FAQ
Are Hex Socket Cap Screws and Hexagon Socket Head Cap Screws the Same?
The terms commonly refer to the same cylindrical-head product with an internal hex drive. However, purchasing descriptions can be inconsistent. Use a product standard or drawing to establish the exact head configuration and dimensions.
Are Hex Socket Cap Screws Always Stainless Steel?
No. The name describes the head and drive configuration rather than the material. State the required material grade and mechanical properties in the specification, and confirm availability for the requested product.
Can I Order a Replacement Using Only a Photograph?
A photograph can help identify the general configuration but cannot reliably establish thread pitch, tolerances, material properties, or finish. Provide the original drawing or specification where available, supported by measurements and sample information.
Can Metric and Inch Screws Be Interchanged?
They should not be treated as interchangeable. Similar-looking screws may have different diameters, thread spacing, and socket dimensions. Match the complete thread designation to the receiving thread.
Does a Longer Screw Need a Larger Head?
Not automatically. Head dimensions depend on the product standard and nominal size, rather than length alone. Check the applicable dimensional specification or drawing instead of assuming that head size increases with screw length.
Are Fully Threaded and Partially Threaded Screws Interchangeable?
Not in every assembly. Different thread coverage can change where the shank and threads sit within the joint. Confirm engagement, clearance, and the required threaded length before approving a replacement.
Can I Replace a High-strength Steel Screw with Stainless Steel?
Do not assume equivalence based on size. Stainless steel and high-strength steel fasteners can have different mechanical properties. Review the required strength, environment, and connection design before approving a material change.
Can a Hex Socket Cap Screw Be Installed Flush?
A conventional cylindrical head requires a suitable counterbore to sit flush with or below the component surface. Check seating, recess dimensions, remaining component thickness, and tool access.
Does a Black Finish Mean the Screw Is Suitable Outdoors?
No. Color alone does not identify corrosion performance. Specify the actual finish and required exposure conditions. Confirm whether the proposed material and treatment meet the application's requirements.
Can Pi Chan Review a Drawing for a Custom Screw?
Submit the complete drawing, required material and finish, quantity, and application details. Pi Chan can then confirm whether the proposed specification can be supplied and identify any information needed for quotation.
Are Samples and Inspection Documents Available?
Ask about the specific samples and records required for your purchase. Availability, cost, and lead time must be confirmed. Agree on acceptance criteria before samples or production parts are approved.
What Are the Minimum Order Quantity and Lead Time?
They depend on the screw specification, tooling, material, finish, quantity, and production schedule. Include your requested delivery date and destination when asking for a quotation.
